38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder

Product Details

Place of Origin: Zhejiang, China

Brand Name: Jialong

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: 1 - 1 sets $5,500.00 >= 2 sets $5,200.00

Packaging Details: woodern package

Delivery Time: 1-35 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

parallel twin screw extruder barrel

,

pvc parallel twin screw barrel

,

pvc twin screw extruder barrel

Barrel Material:
38CrMOAIA
Barrel Diameter:
45-500mm
Screw Cooling Power:
3kw
Barrel Length:
1000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Surface Roughness:
Ra0.4um
Nitriding Depth:
0.5-0.8mm
Screw Straightness:
0.015mm
Screw Diameter:
20-300mm
Hardness:
HRC58-62
Nitriding Treatment:
Nitriding
Screw And Barrel Combined Precision:
0.015mm
Material:
High-quality Alloy Steel
Screw And Barrel Combined Length:
3000-10000mm
Screw Structure:
Parallel Twin Screw
Barrel Structure:
Parallel
Barrel Straightness:
0.015mm
Screw And Barrel Combined Weight:
100-20000kg
Barrel Material:
38CrMOAIA
Barrel Diameter:
45-500mm
Screw Cooling Power:
3kw
Barrel Length:
1000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Surface Roughness:
Ra0.4um
Nitriding Depth:
0.5-0.8mm
Screw Straightness:
0.015mm
Screw Diameter:
20-300mm
Hardness:
HRC58-62
Nitriding Treatment:
Nitriding
Screw And Barrel Combined Precision:
0.015mm
Material:
High-quality Alloy Steel
Screw And Barrel Combined Length:
3000-10000mm
Screw Structure:
Parallel Twin Screw
Barrel Structure:
Parallel
Barrel Straightness:
0.015mm
Screw And Barrel Combined Weight:
100-20000kg
Description

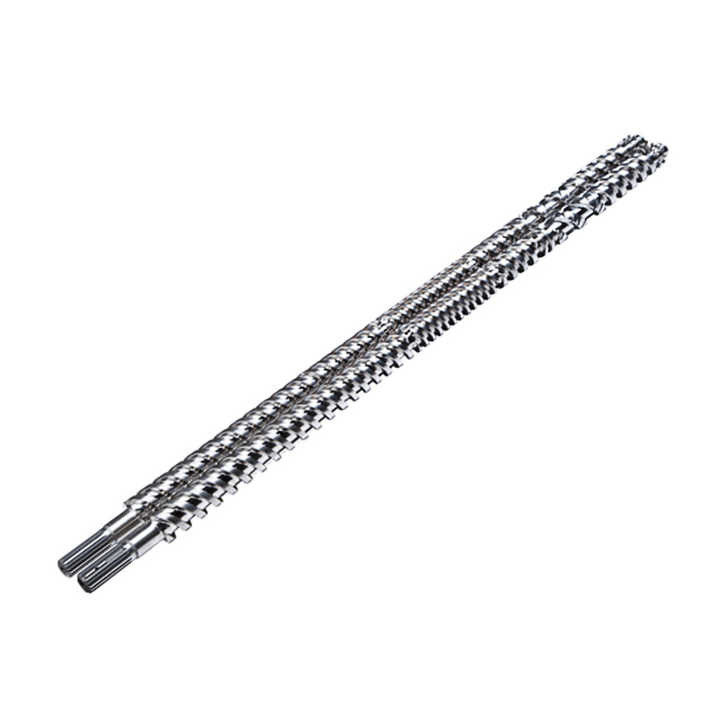

38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder

38CrMoAIA parallel twin screw barrel for recycle pvc pe film extruder38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 0

Parallel twin-screw barrel, suitable for PVC, PE, PP, PE, ABS, PVC, raw material granulation and other products. It is mainly used in building materials industry, chemical industry, plastic industry, agricultural industry.



Diameter Ф45/2~Ф250/2
L/D ratio 16-40
Barrel material 38CrMoAIA
Nitride treatment, surface hardness HV≥900
Nitride layer thickness 0.5-0.8mm
Screw alloy material 38CrMoAlA as basic material, bimetallic alloy is welded on the screw flight, prolonging the life of the screw

The bimetallic parallel twin screw and barrel for many kinds of plastic extruder in many specifications.
Abrasion resistant and corrosion resistant
Material:High quality alloy steel
1)38CrMoAlA
2)42CrMo
3)9Cr18MoV
Technics:

1)Heat-treatment
2)Nitriding treatment
3)Hard-chrome electroplated
4)Bimetallic-alloy coating spraying
Technical parameter
Nitriding depth:0.50-0.80mm
Nitriding hardness:900-1000HV
Nitriding brittleness:Less than grade 1
Surface roughtness: Ra0.4
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made
from imported anti-wear alloy can be improvde abrasion performance.
Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares



38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 1

38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 2



  Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.

  Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!

38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 3

 JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.

 JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.

38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 4

 38CrMoAIA Parallel Twin Screw Barrel For Recycle Pvc Pe Film Extruder 5

FAQ

01

Q: Are you trading company or manufacturer ?

A: We starts from the foundry factory over more than 20 years. located in zhoushan City, zhejiang Province, China, close to ningbo Port.and ningbo Airport. It is a manufacturer

integrating production and processing. We have offices in zhoushan jintang respectively.

Customers are welcome to visit and inspect the factory.



02

Q: Do you support OEM and ODM?

A: Yes! We have the top design teams in China. You just send us the drawings of the

product and our design team will do it.Please trust our expertise !



03

Q:Why choose us?

A: In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.



04

Q:Do you produce them all?

A: Yes, we specialize in the production of all products are their own production.



05

Q:How to guarantee the quality problem?

A: We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery,absolutely eliminate defective products.



06

Q:What's the minimum quantity of an order?

A: We are interested in offering a quotation based on your total combined order preferences with freight delivered to your location. Please advise and thank you for your

interest!



07

Q:How do I receive the goods?

A: We have professional transport agents, which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc. Please provide detailed address, we can also provide

door-to-door service for you.

08

Q: How long is your delivery time?

A:It is usually 20-35 days. Others calculate the time according to the quantity of your

order.
