Product Details
Place of Origin: Zhejiang, China
Brand Name: Jialong
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: 1 - 2 sets $5,600.00 >= 3 sets $5,000.00
Packaging Details: woodern package
Delivery Time: 1-35 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 Set/Sets per Month
Barrel Material: |
38CrMOAIA |
Barrel Diameter: |
45mm |
Screw Cooling Power: |
3kw |
Barrel Length: |
1000mm |
Barrel Heating Zones: |
4 |
Barrel Heating Power: |
5kw |
Max. Screw Speed: |
600rpm |
Fragility Of Nitrided Layer: |
≤2 |
Depth Of Nitrided Layer: |
0.5-0.8mm |
L/D Ratio: |
32:1 |
Torque: |
500Nm |
Screw Straightness: |
0.015mm/100mm |
Material: |
38CrMoAlA |
Max. Output: |
150kg/h |
Hardness Of Nitrided Layer: |
≥950HV |
Hardness: |
HV950-1100 |
Surface Roughness: |
Ra0.4μm |
Screw Diameter: |
45mm |
Surface Treatment: |
Nitriding |
Main Motor Power: |
37kW |
Barrel Material: |
38CrMOAIA |
Barrel Diameter: |
45mm |
Screw Cooling Power: |
3kw |
Barrel Length: |
1000mm |
Barrel Heating Zones: |
4 |
Barrel Heating Power: |
5kw |
Max. Screw Speed: |
600rpm |
Fragility Of Nitrided Layer: |
≤2 |
Depth Of Nitrided Layer: |
0.5-0.8mm |
L/D Ratio: |
32:1 |
Torque: |
500Nm |
Screw Straightness: |
0.015mm/100mm |
Material: |
38CrMoAlA |
Max. Output: |
150kg/h |
Hardness Of Nitrided Layer: |
≥950HV |
Hardness: |
HV950-1100 |
Surface Roughness: |
Ra0.4μm |
Screw Diameter: |
45mm |
Surface Treatment: |
Nitriding |
Main Motor Power: |
37kW |

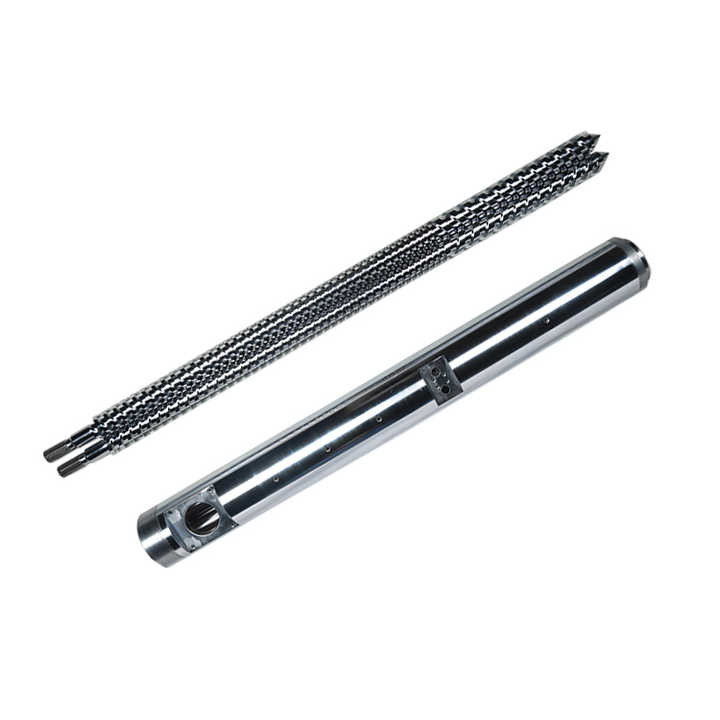

Factory Price Parallel Twin Screw And Barrel Professional parallel co-rotating twin screw extruder
Parallel twin-screw barrel, suitable for PVC, PE, PP, PE, ABS, PVC, raw material granulation and other products. It is mainly used in building materials industry, chemical industry, plastic industry, agricultural industry.
Diameter | Ф45/2~Ф250/2 |
L/D ratio | 16-40 |
Barrel material | 38CrMoAIA |
Nitride treatment, surface hardness | HV≥900 |
Nitride layer thickness | 0.5-0.8mm |
Screw alloy material | 38CrMoAlA as basic material, bimetallic alloy is welded on the screw flight, prolonging the life of the screw |
The bimetallic parallel twin screw and barrel for many kinds of plastic extruder in many specifications. Abrasion resistant and corrosion resistant Material:High quality alloy steel 1)38CrMoAlA 2)42CrMo 3)9Cr18MoV Technics:1)Heat-treatment 2)Nitriding treatment 3)Hard-chrome electroplated 4)Bimetallic-alloy coating spraying Technical parameter Nitriding depth:0.50-0.80mm Nitriding hardness:900-1000HV Nitriding brittleness:Less than grade 1 Surface roughtness: Ra0.4 Depth of nitration case:0.4-0.7mm Hardness of nitration:HV900-1060 (HRc56°-65°) Roughness of the surface:Ra 0.4μm Screw straightness: 0.015mm/m Chrome plating thickness: 0.01-0.1mm Bimetal coating thickness 1.5-2.0mm Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made from imported anti-wear alloy can be improvde abrasion performance. Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares |
Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.
Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!
JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.
JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.
FAQ
01
Q: Are you trading company or manufacturer ?
A: We starts from the foundry factory over more than 20 years. located in zhoushan City, zhejiang Province, China, close to ningbo Port.and ningbo Airport. It is a manufacturer
integrating production and processing. We have offices in zhoushan jintang respectively.
Customers are welcome to visit and inspect the factory.
02
Q: Do you support OEM and ODM?
A: Yes! We have the top design teams in China. You just send us the drawings of the
product and our design team will do it.Please trust our expertise !
03
Q:Why choose us?
A: In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
04
Q:Do you produce them all?
A: Yes, we specialize in the production of all products are their own production.
05
Q:How to guarantee the quality problem?
A: We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery,absolutely eliminate defective products.
06
Q:What's the minimum quantity of an order?
A: We are interested in offering a quotation based on your total combined order preferences with freight delivered to your location. Please advise and thank you for your
interest!
07
Q:How do I receive the goods?
A: We have professional transport agents, which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc. Please provide detailed address, we can also provide
door-to-door service for you.
08
Q: How long is your delivery time?
A:It is usually 20-35 days. Others calculate the time according to the quantity of your
order.
