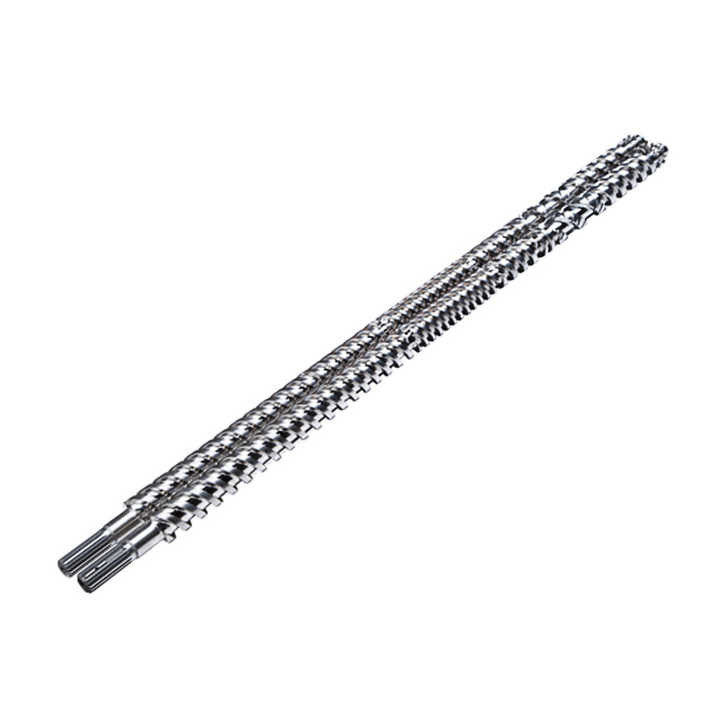

Plastic Granulator Parallel Twin Co Rotating Twin Screw Extruder Barrel 35mm

Product Details

Place of Origin: Zhejiang, China

Brand Name: Jialong

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: 1 - 2 sets $5,000.00 >= 3 sets $4,700.00

Packaging Details: woodern package

Delivery Time: 1-35 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

twin screw extruder barrel 35mm

,

parallel extruder screw barrel

,

parallel twin screw extruder barrel

Barrel Material:
38CrMOAIA
Barrel Diameter:
35mm
Screw Cooling Power:
3kw
Barrel Length:
1000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Barrel Material:
38CrMOAIA
Barrel Diameter:
35mm
Screw Cooling Power:
3kw
Barrel Length:
1000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Description
Plastic Granulator Parallel Twin Co Rotating Twin Screw Extruder Barrel 35mm

2024 Hot sale Plastic granulator Parallel Twin Co rotating Twin Screw Barrel Extruder machinePlastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 0

Parallel twin-screw barrel, suitable for PVC, PE, PP, PE, ABS, PVC, raw material granulation and other products. It is mainly used in building materials industry, chemical industry, plastic industry, agricultural industry.



Diameter Ф45/2~Ф250/2
L/D ratio 16-40
Barrel material 38CrMoAIA
Nitride treatment, surface hardness HV≥900
Nitride layer thickness 0.5-0.8mm
Screw alloy material 38CrMoAlA as basic material, bimetallic alloy is welded on the screw flight, prolonging the life of the screw
The bimetallic parallel twin screw and barrel for many kinds of plastic extruder in many specifications.
Abrasion resistant and corrosion resistant
Material:High quality alloy steel
1)38CrMoAlA
2)42CrMo
3)9Cr18MoV
Technics:1)Heat-treatment
2)Nitriding treatment
3)Hard-chrome electroplated
4)Bimetallic-alloy coating spraying
Technical parameter
Nitriding depth:0.50-0.80mm
Nitriding hardness:900-1000HV
Nitriding brittleness:Less than grade 1
Surface roughtness: Ra0.4
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made
from imported anti-wear alloy can be improvde abrasion performance.
Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares



Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 1Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 2Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 3



  Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.

  Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!

Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 4

 JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.

 JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.

Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 5     Plastic Granulator Parallel Twin Co Rotating  Twin Screw Extruder Barrel 35mm 6
