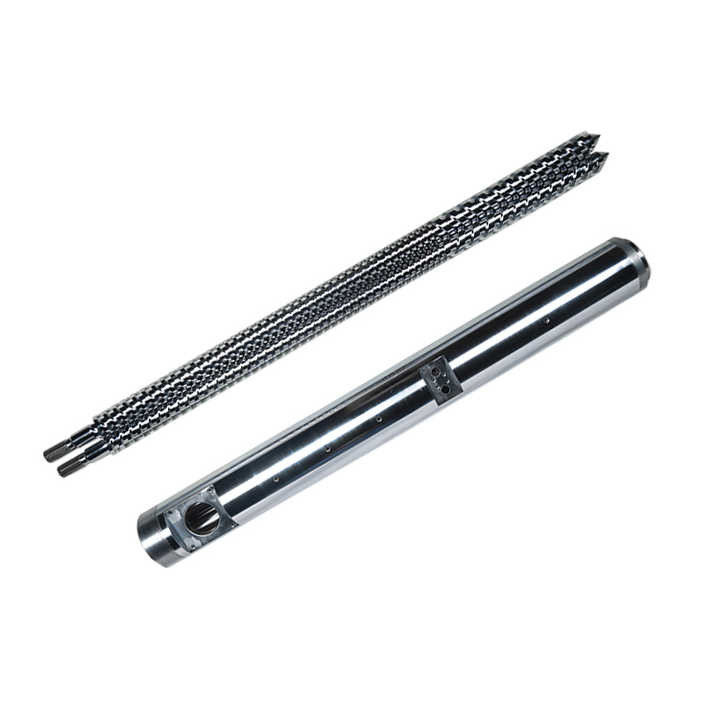

Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo

Product Details

Place of Origin: Zhejiang, China

Brand Name: Jialong

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: 1 - 1 sets $7,000.00 >= 2 sets $6,800.00

Packaging Details: woodern package

Delivery Time: 1-35 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

pvc parallel twin screw and barrel

,

parallel twin screw and barrel extruder

,

automatic screws and barrels

Barrel Material:
38CrMoAlA, 42CrMo
Barrel Diameter:
45-300mm
Screw Cooling Power:
3kw
Barrel Length:
800-10000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Barrel Surface Treatment:
Nitriding, Bimetallic Coating
Barrel Structure:
Parallel Twin Barrel
Screw Diameter:
20-250mm
Screw Type:
Conical Twin Screw
Screw Hardness:
HRC58-62
Screw Structure:
Parallel Twin Screw
Screw Surface Treatment:
Nitriding, Bimetallic Coating
Screw Length:
800-10000mm
Barrel Type:
Conical Twin Barrel
Screw Cooling System:
Air Cooling, Water Cooling
Barrel Hardness:
HRC58-62
Screw Material:
38CrMoAlA, 42CrMo
Barrel Material:
38CrMoAlA, 42CrMo
Barrel Diameter:
45-300mm
Screw Cooling Power:
3kw
Barrel Length:
800-10000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Barrel Surface Treatment:
Nitriding, Bimetallic Coating
Barrel Structure:
Parallel Twin Barrel
Screw Diameter:
20-250mm
Screw Type:
Conical Twin Screw
Screw Hardness:
HRC58-62
Screw Structure:
Parallel Twin Screw
Screw Surface Treatment:
Nitriding, Bimetallic Coating
Screw Length:
800-10000mm
Barrel Type:
Conical Twin Barrel
Screw Cooling System:
Air Cooling, Water Cooling
Barrel Hardness:
HRC58-62
Screw Material:
38CrMoAlA, 42CrMo
Description
Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo

2024 Automatic pvc parallel twin screw barrel extruder 82 mm parallel twin screw extruderAutomatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 0

Parallel twin-screw barrel, suitable for PVC, PE, PP, PE, ABS, PVC, raw material granulation and other products. It is mainly used in building materials industry, chemical industry, plastic industry, agricultural industry.



Diameter Ф45/2~Ф250/2
L/D ratio 16-40
Barrel material 38CrMoAIA
Nitride treatment, surface hardness HV≥900
Nitride layer thickness 0.5-0.8mm
Screw alloy material 38CrMoAlA as basic material, bimetallic alloy is welded on the screw flight, prolonging the life of the screw
The bimetallic parallel twin screw and barrel for many kinds of plastic extruder in many specifications.
Abrasion resistant and corrosion resistant
Material:High quality alloy steel
1)38CrMoAlA
2)42CrMo
3)9Cr18MoV
Technics:1)Heat-treatment
2)Nitriding treatment
3)Hard-chrome electroplated
4)Bimetallic-alloy coating spraying
Technical parameter
Nitriding depth:0.50-0.80mm
Nitriding hardness:900-1000HV
Nitriding brittleness:Less than grade 1
Surface roughtness: Ra0.4
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made
from imported anti-wear alloy can be improvde abrasion performance.
Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares



Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 1Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 2

Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 3



  Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.

  Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!

Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 4

 JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.

 JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.

Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 5

 Automatic Pvc Parallel Twin Screw And Barrel Extruder 82 Mm 38CrMoAlA 42CrMo 6
