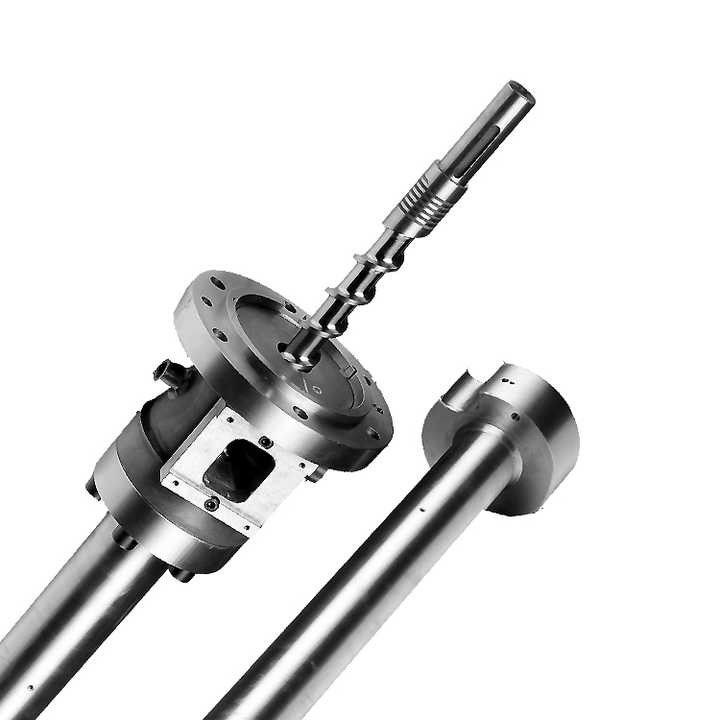

High Performance Single Screw Extruder Screw Barrel High Torque For Extruder

Product Details

Place of Origin: Zhejiang, China

Brand Name: Jialong

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: 1 - 2 pieces $1,200.00 >= 3 pieces $1,100.00

Packaging Details: woodern package

Delivery Time: 1-35 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

high torque single screw barrel

,

high torque single screw extruder screw barrel

,

35mm single screw barrel

Barrel Material:
38CrMoAlA, 42CrMo, SKD61, SKD11, Etc.
Barrel Diameter:
35mm
Screw Cooling Power:
3kw
Barrel Length:
800-8000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Material:
38CrMoAlA, 42CrMo, SKD61, SKD11, Etc.
Screw Length:
800-8000mm
Nitriding Hardness:
≥950HV
Barrel Nitriding Depth:
0.5-0.8mm
Nitriding Depth:
0.5-0.8mm
Barrel Hardness:
HB280-320
Screw Diameter:
20-200mm
Barrel Bore Diameter:
20-200mm
Nitriding Brittleness:
≤Grade 1
Surface Roughness:
Ra0.4μm
Screw Straightness:
0.015mm/m
Hardness:
HV950-1100
Barrel Material:
38CrMoAlA, 42CrMo, SKD61, SKD11, Etc.
Barrel Diameter:
35mm
Screw Cooling Power:
3kw
Barrel Length:
800-8000mm
Barrel Heating Zones:
4
Barrel Heating Power:
5kw
Material:
38CrMoAlA, 42CrMo, SKD61, SKD11, Etc.
Screw Length:
800-8000mm
Nitriding Hardness:
≥950HV
Barrel Nitriding Depth:
0.5-0.8mm
Nitriding Depth:
0.5-0.8mm
Barrel Hardness:
HB280-320
Screw Diameter:
20-200mm
Barrel Bore Diameter:
20-200mm
Nitriding Brittleness:
≤Grade 1
Surface Roughness:
Ra0.4μm
Screw Straightness:
0.015mm/m
Hardness:
HV950-1100
Description
High Performance Single Screw Extruder Screw Barrel High Torque For Extruder

High performance extruder single screw barrel for extruderHigh Performance Single Screw Extruder Screw Barrel High Torque For Extruder 0

It has the characteristics of high temperature resistance, no deformation at high temperature, wear resistance, corrosion resistance, high strength, high torque, high speed and so on. It is mainly used for extrusion of soft and hard PVC, polyethylene and other thermoplastics, and can process a variety of plastic products.

Steel Material
DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA
Heat Treatment
Nitride depth: 0.5 mm - 0.7 mm
Surface hardness:
HV900 - HV1,000
Chromate plating:
Thickness 0.05 mm - 0.10 mm, hardness HV950
Special treatment:
Carbide coating on screw flight and bimetallic barrel
Screw straight tolerance
0.015 mm/m
Surface roughness
Ra 0.4m
Product classification:
According to different raw materials and products, the screw can be chosen: general type, pin type, barrier type, separation type,
and vented type, etc.
Structure features:
1. Simple structure, low price. 2. Suitable for plasticizing polymer extrusion, suitable for extrusion
processing of granular materials. Small shear degradation of polymer, but the material stays in the extruder for a long time. 3.
Easy to maneuver, simple process control. 4. It has good mixing and plasticizing ability, and the material stays in the extruder
for a short time, which is suitable for powder processing. 5. Large output, fast extrusion speed, low output energy consumption.

High Performance Single Screw Extruder Screw Barrel High Torque For Extruder 1

High Performance Single Screw Extruder Screw Barrel High Torque For Extruder 2

  Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.

  Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!

High Performance Single Screw Extruder Screw Barrel High Torque For Extruder 3

 JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.

 JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.

High Performance Single Screw Extruder Screw Barrel High Torque For Extruder 4

 High Performance Single Screw Extruder Screw Barrel High Torque For Extruder 5

FAQ

01

Q: Are you trading company or manufacturer ?

A: We starts from the foundry factory over more than 20 years. located in zhoushan City, zhejiang Province, China, close to ningbo Port.and ningbo Airport. It is a manufacturer

integrating production and processing. We have offices in zhoushan jintang respectively.

Customers are welcome to visit and inspect the factory.



02

Q: Do you support OEM and ODM?

A: Yes! We have the top design teams in China. You just send us the drawings of the

product and our design team will do it.Please trust our expertise !



03

Q:Why choose us?

A: In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.



04

Q:Do you produce them all?

A: Yes, we specialize in the production of all products are their own production.



05

Q:How to guarantee the quality problem?

A: We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery,absolutely eliminate defective products.



06

Q:What's the minimum quantity of an order?

A: We are interested in offering a quotation based on your total combined order preferences with freight delivered to your location. Please advise and thank you for your

interest!



07

Q:How do I receive the goods?

A: We have professional transport agents, which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc. Please provide detailed address, we can also provide

door-to-door service for you.

08

Q: How long is your delivery time?

A:It is usually 20-35 days. Others calculate the time according to the quantity of your

order.
